PVC Pivot Roof Windows

PVC pivot roof windows

Eco-friendly PVC roof windows come with the frame profiles made of as much as 63% recycled material. In addition, materials used to manufacture windows such as glass, PVC profiles, aluminium and steel components can be reused virtually in 100%

Windows are constructed of multi-chamber PVC profiles strengthened from the inside with galvanised steel which prevents their deformation. PVC profiles are made on the basis of calcium and zinc stabiliser.

Windows ensure an abundance of natural light within the attic space, which makes us happy to be there, feel good and want to live.

They stand behind safety and peace of mind for many years to come. Windows are durable and resistant to adverse weather conditions. The material they are made of does not absorb moisture and does not need to be painted, while the glass is covered by a lifetime hail warranty.

Windows prevent heat loss in the winter, which allows us to save on heating. They come with triple-glazed units, while their installation with Thermo flashings improves the heat transfer coefficient by up to 15%.

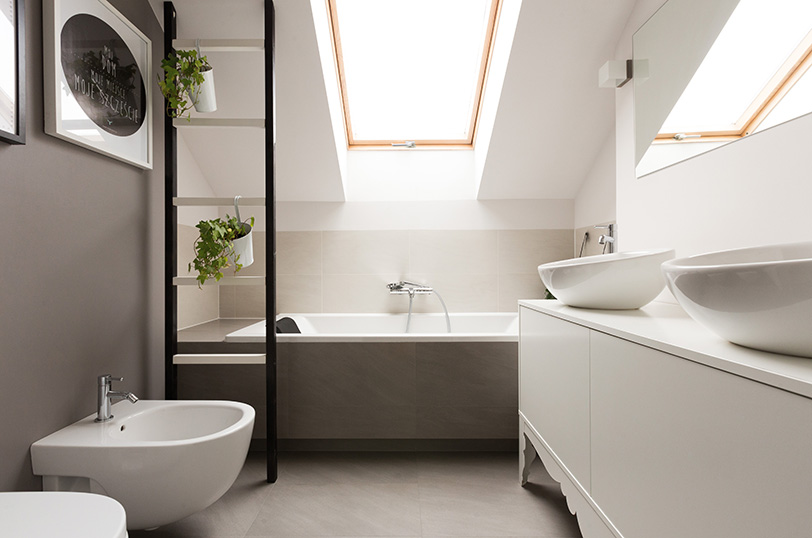

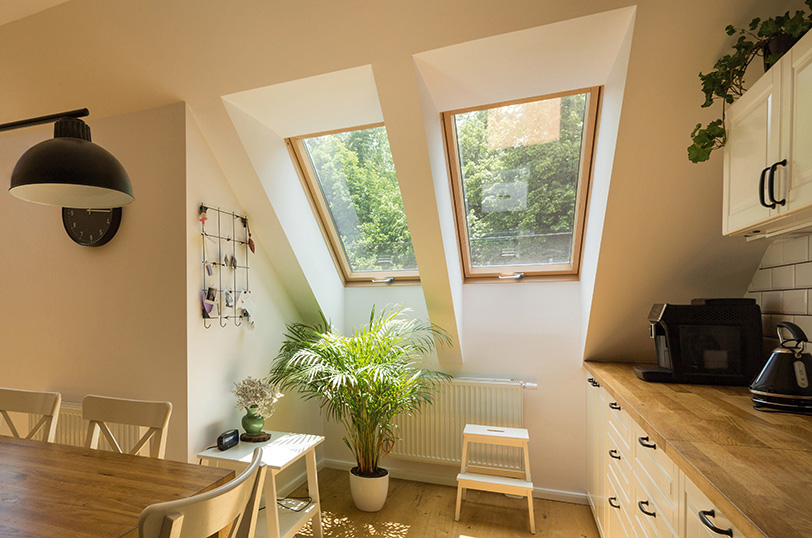

They can be fitted in any room, including living rooms, bedrooms, children’s rooms and spaces with elevated humidity levels such as kitchens and bathrooms.

They work well both for new investments and as replacement windows. Popular roof windows can be replaced without harm to the lining, while the whole process is quick and easy.

Our windows can be perfectly matched to any interior. They are available in classic white as well as in attractive veneers such as pine and golden oak that resemble natural wood.



PVC pivot roof windows





  • Popular window design with the hinge positioned in the middle of the window height intended for use in rooms with elevated humidity levels.
  • Easy window operation by means of the handle situated in the base of the sash and featuring two-step micro-opening.
  • The sash can be rotated through 180° and locked allowing safe and easy cleaning of the outer pane and facilitating installation of the awning blind.
  • Increased burglary resistance - topSafe system.
  • thermoPro technology ensures improved quality and parameters of roof windows, thus increasing their energy-efficiency performance, providing greater durability, ensuring excellent tightness and facilitating the installation process.
  • Wide range of additional accessories.
  • Wide range of flashings to ensure installation of the window in virtually all types of roof coverings.
  • Option to install electric control.
  • Suitable for pitches from 15-90°.

PVC pivot roof windows



PVC Pivot Roof WindowsWindows manufactured in the thermoPro technology

System topSafeWindows manufactured in the topSafe system









Get inspired

  • PTP-V


    • Air inlet V35efficient V35 air inlet
    • Glazing unit U4energy-efficient U4 glazing unit: Uw=1.1W/m2K with standard flashing Uw=1.0W/m2K with EHV-AT Thermo flashing
    • Glazing unit U5highly energy-efficient U5 glazing unit: Uw=1.0W/m2K with standard flashing Uw=0.9W/m2K with EHV-AT Thermo flashing
    • Multi chamber white PVC profilewhite multi-chamber PVC profiles strengthened from the inside with galvanised steel
    • Multi chamber oak or pine PVC profileAlso available in golden oak (PTP-V/GO) and pine veneer (PTP-V/PI)
    • Window is durable and resistant to corrosionThe material used does not absorb any moisture and the window itself is durable and corrosion free
    • Designed for kitchens and bathroomsIntended for installation in rooms where elevated humidity levels stay for long time (kitchens, bathrooms)
    • Suitable for pitches from 15-90Suitable for pitches 15-90°
    • 1,0 W/m²K window U-value 0,5 W/m²K glazing U-value 34 dB acoustic insulation Rw 4HT-10-4H-10-4HT glazing unit krypton inert gas filled panes + external glass toughened V35 air inlet type up to 41m³/h air inlet air flow - varnishing 4 seals + multi-point opening Elegant white handle
    • 1,3 W/m²K window U-value 1,0 W/m²K glazing U-value 32 dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V35 air inlet type up to 41m³/h air inlet air flow - varnishing 4 seals + multi-point opening Elegant white handle
    • 1,3 W/m²K window U-value 1,0 W/m²K glazing U-value 33 dB acoustic insulation Rw 4H-15-33.2 glazing unit argon inert gas filled panes + external glass toughened V35 air inlet type up to 41m³/h air inlet air flow - varnishing 4 seals + multi-point opening Elegant white handle
    • 0,5 W/m²K glazing U-value 4HS-10-4HT-8-33.2T glazing unit krypton inert gas filled panes + external glass toughened + external glass with easy maintenance layer + internal glass laminated, anti-burglary glass class P2A twice varnishing four seals Elegant handle
